Tile clamps

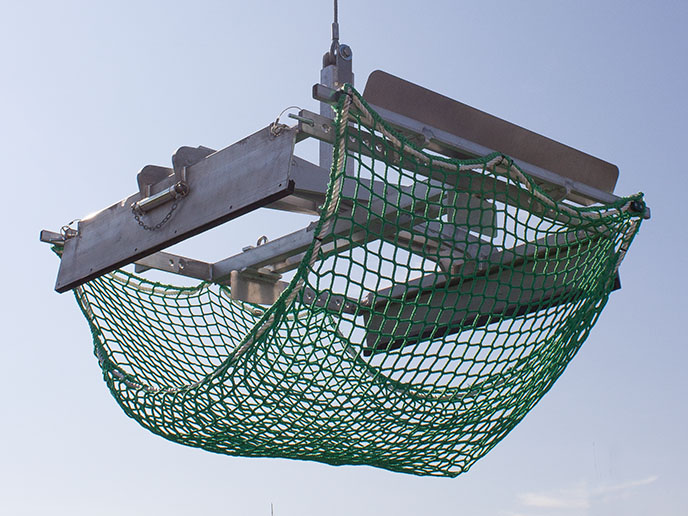

The roofing tile clamps made of high-strength aluminium can be used to lift clay tiles or concrete blocks easily and transport them safely. Depending on your needs, you can choose between various designs, which differ in terms of load capacity and pick-up quantity. All Klaas tile clamps have an automatic unlocking mechanism and a built-in pivoting protective basket including safety net.

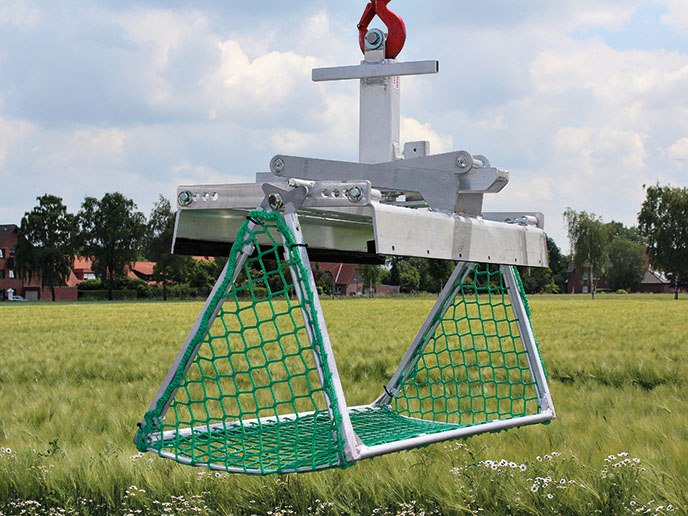

Universal clamp, one-row

made of aluminium
with automatic unlocking mechanism
for one row of clay tiles or concrete blocks

Jaw length	1,150 mm
Opening width	240 – 520 mm
Payload	200 kg
Net weight	45.00 kg
Item number	01.02.00004

Universal clamp, two-row

made of aluminium
with automatic unlocking mechanism
for two rows of clay tiles or concrete blocks

Jaw length	1,150 mm
Opening width	690 – 1.015 mm
Payload	420 kg
Net weight	55.00 kg
Item number	01.02.00006

Universal clamp, one- to three-row

made of aluminium
with automatic unlocking mechanism
for one to three rows of clay tiles or concrete blocks

Jaw length	1,150 mm
Opening width	300 – 1.200 mm
Net weight	620 kg
Net weight	65.00 kg
Item number	01.02.00149

Clay tile clamp

made of aluminium
for two rows of clay roof tiles

Jaw length	1,150 mm
Opening width	740 – 1.010 mm
Payload	350 kg
Net weight	40.00 kg
Item number	01.02.00005

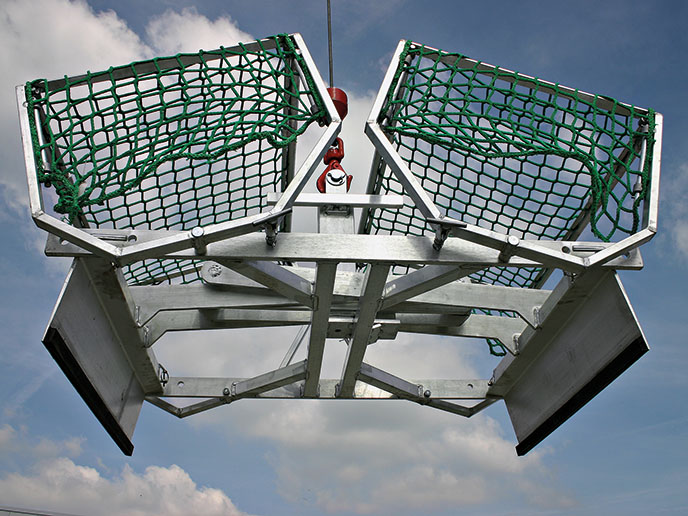

Tile clamp DS5, two-row

made of aluminium
for two rows of clay roof tiles

Jaw length	800 mm
Opening width	1.170 – 1.260 mm
Payload	420 kg
Net weight	55.00 kg
Item number	01.02.00012
